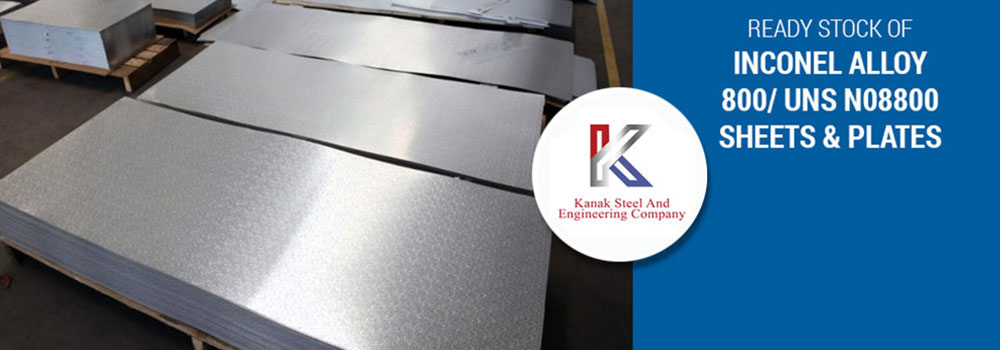

Incoloy 800 Sheets & Plates UNS N08800

Home / Products / Sheets & Plates / Incoloy 800 Sheets & Plates UNS N08800

ASTM B409 Alloy 800 Mirror Finish Sheet, UNS N08800 Perforated Sheets, Incoloy Alloy 800 BA Finish Sheets, DIN 1.4876 Polished Plate, ASME SB409 Incoloy Alloy 800 CR Sheets Supplier in India.

Suppliers and Manufacturer of Incoloy 800 Sheets, Plates & Coils, which resists different vigorously corrosive dealers extraordinarily well. Incoloy 800 Sheets has many specific business packages, a number of which include: Marine, Chemical processing, Power, Pollution control, Waste disposal, Paper processing, etc. UNS N08800 Coils can characteristic beneath very excessive temperatures and extreme mechanical stress, and additionally in which excessive floor balance is required. Alloy 800 Sheets hardens due to cold working only. Nickel 800 Sheets are also used for chemical and petrochemical processing. The Incoloy Alloy 800 Sheets manufactured by us is exported throughout the national and international market and comply with the grades of the international market largely. These plates are generally employed in various heaters and super heater turbing due to their strong composition. On the other side, the coils show up extreme resistance to protracted exposure, that too at the high temperatures.

Incoloy WNR 1.4876 Plates suffers corrosive attack (maximum extreme in weldments) at sixty five Degree C within the vapour section and at eighty Degree C within the liquid section. Nickel 800 Plates can be supplied in random lengths, cut to order or machined to customer requirements. We also offer the same to our clients in customized sizes and specifications. Nickel 800 Plates can be supplied in random lengths, cut to order or machined to customer requirements. The 800 Incoloy Cold Rolled Sheets exhibits unprecedented standards of high thermal conductivity and resistance to surface abrasion. Owing to its high demand in the petrochemical and paper industry, The sheet and plates are largely used in the heat handling industries within the muffles, furnace machineries, and also for those heat handling baskets and the trays. it isn’t always endorsed to be used in oxidizing media or within the presence of ferric or cupric salts due to the fact they’ll motive fast untimely corrosion failure. These salts in Sheets can also additionally expand whilst hydrochloric acid comes in touch with iron and copper.

Incoloy 800 Sheets & Plates Specification

Incoloy 800 Sheets & Plates Specifications ASTM B409 / ASME SB409, BS EN 10088-2, en 10028-7, IS 6911
Incoloy 800 Sheets & Plates Dimension Standard MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Incoloy 800 Sheets & Plates Size Range Cold rolled ASME SB409 Grade 800 Inconel Sheet 0.5-6.4 mm
Hot rolled ASME SB409 Grade 800 Inconel Sheet 3.0–10.0 mm
800 Incoloy Sheets & Plates Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Incoloy 800 Sheets & Plates Length 2000mm, 2440mm, 3000mm, 5800mm, 8000mm, etc
Incoloy 800 Sheets & Plates Thickness 0.3 mm to 120 mm
International Standard of Incoloy 800 Sheets & Plates ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness) of Incoloy 800 Sheets & Plates EN 10258/ DIN 59381)
EN 10151 ASME SB409 800 Inconel Strips
EN 10088 SA -240-800 Strips
Finish of Inconel 800 Sheets & Plates 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Form Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Incoloy 800 Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

ASTM B409 Inconel 800 Sheets & Plates Equivalent Grade

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20

ASME SB409 Inconel 800 Sheets & Plates Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Incoloy 800 0.10 max 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00

Inconel 800 Sheets & Plates Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Incoloy 800 7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %
