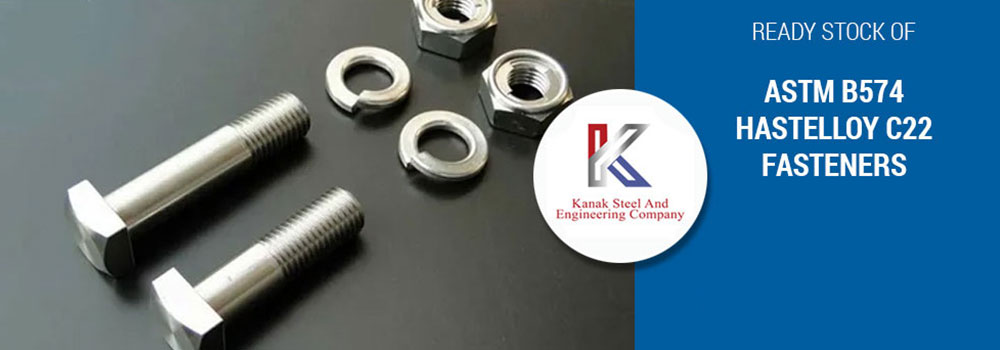

Suppliers and Manufacturer of Hastelloy Alloy C22 Fasteners, which offers a one-piece and self-strengthened connection. Hastelloy UNS N06022 Washers is a connection of pipes, in which the connecting portions have flanges by means of which the components are bolted together. The sphere-formed layout of it lets in the use of computerized burning apparatus. The production of these fasteners is done in the large quantities in our large processing facility. These are made available in the wide range of specifications, designations, shapes and custom dimensions also in altered dimensions. The Primary Alloying Materials Used In The Hastelloy C22 Fasteners Include Metals Like Nickel, Chromium, Molybdenum And Tungsten. Our experts have a thorough understanding of industrial needs, so they develop precise Hastelloy C22 Fasteners as per the international and national quality standards.
Super Duplex 2507 Bolts are considerably sought after for its right best, corrosion resistant, and best finishing. SDSS WNR 1.4410 Nuts are warmth treatable and feature a few hovering electricity and ductility collectively in company of an unequalled weldability and fabricability. Super Duplex S32750/S32760 Fasteners to ensure quality and long service life. Our high-grade Fasteners contains different metals and properties which are required for any application. Therefore the application of the Super Duplex Studs can be seen in the general, petroleum, petrochemical, sea water, marine and in other industrial applications. A specific feature for Alloy 2507 Fasteners is high chromium and high nickel contents, which make this grade suitable for use in high temperatures. The Super Duplex Steel Fasteners has a quality to fulfill the high demands urge by the gas, oil and marine industries because of its outstanding physical and mechanical properties. it’s typically an advanced cloth to apply in place of the annoying substances which include steels or amazing alloys.
| Material | Hastelloy C22 Alloy Fasteners |
|---|---|
| Hastelloy C22 Fasteners ASTM / ANSI | ASTM B574 / ASME SB574 ASTM F593, F594, F1554 / ASME SF593, F594, F554 |
| Size of Hastelloy C22 Fasteners | M02 to M160 |
| Length of ASTM B574 Hastelloy C22 Fasteners | 3 mm to 200 mm |
| ASTM B574 Hastelloy C22 Fasteners Threads: | BSW, UNC, BSF, UNF METRIC, or as required |
| M3, M14, M2.5, M2, M12, M5, M6, M4, M20, M16, M30, M24, M36, M8, M10 etc. | |
| ASME SB574 Hastelloy C22 Fasteners Standard: | JIS, ASTM,BS, GB, DIN, IS, ISO ANSI – American National Standards Institute
DIN: DIN 931, DIN 970, 934 DIN DIN 933 UTS – Unified Thread Standard : NPTF, UNS, NPT, UNF, UNC, UNEF ISO – International Organization for Standardization : ISO 4033 ,ISO 4032, JIS standards |
| Widely Use Hastelloy C22 Bolts Types | Hastelloy C22 Hex Bolt, Square Bolt, Countersunk Bolt, Hex Head Bolt,T Bolt, U Bolt, Eye Bolt, Lag Bolt etc. |
| Widely Use Hastelloy C22 Nut Types | Hastelloy C22 Hex Head Nut, Lock Nut Coupling Nut, Square Nut, Wing Nut, Panel Nut, Acorn Nuts, T Nut, Dome Nut, Eye Nut etc. |
| Widely Use Hastelloy C22 Screw Types | Hastelloy C22 Socket Head Screw, Threaded Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw, Hex Head Screw etc. |
| Widely Use Hastelloy C22 Washer Types | Hastelloy C22 Machine Washers, Lock Washer, Sealing Washer, Star Washers, Split Washer etc. |
| Widely Use Hastelloy C22 Studs Types | Hastelloy C22 Threaded Rod, Tie Rods, Double Ended Studs, Tie Bars etc. |
| Scope of Manufacture |
|
| Hastelloy C22 Fasteners In Form of: | Square, Round, Threading as per Gauge,Round Etc. |
| Test Certificate of Hastelloy C22 Bolts : | EN 10204 / 3.1 |
| Finishing of Hastelloy C22 Fasteners: | Zinc (yellow, white, blue, black), black oxide, Dacroment, Geometry, nickel plated, anodizing, plated zinc-nickel, Stainless steel: Passivated Bright Zinc Plated (BZP), Self-Colour, Hot Dip Galvanised (HDG), Stainless Steel, Sherardized,Mechanically Applied coating and some special one like DACROMET |
| Hastelloy C22 Fasteners Production process | hot forging M24-M100, M2-M24: Cold Forging for Customized connecting element machining and CNC |
| Hastelloy C22 bolts Head drive: | Six-Lobe, Phillips/Slot, Slotted, Phillips etc |
| Origin and service-region: | European Origin of are Western European. However projects with eastern origin are possible on request. |
| Surface Coating of Hastelloy C22 Fasteners materials: |
|
| Top Manufacturers of Fasteners | SPAX® Screws, EBY Fastener, Sundaram Kundan, GKW, Infasco, Precision, APL, Unbrako,Etc. |
| Packing of Hastelloy C22 Fasteners: | In Bulk: pallet, Canton, Small Carton / Box / Pallet, or customer request |
| Specialized manufacturer of | Hastelloy C22 High Tensile Fasteners, Bolts |
| Hastelloy C22 Fasteners Test Certificates |
|
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | NiCr21Mo14W |
| Grade | C | Mn | Si | Co | P | Fe | Mo | Ni | Cr | S | W | V |
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 2.5 max | 0.02 max | 2 – 6 | 12.5 – 14.5 | Bal | 20 – 22.5 | 0.02 max | 2.5 – 3.5 | 0.35 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 100000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
